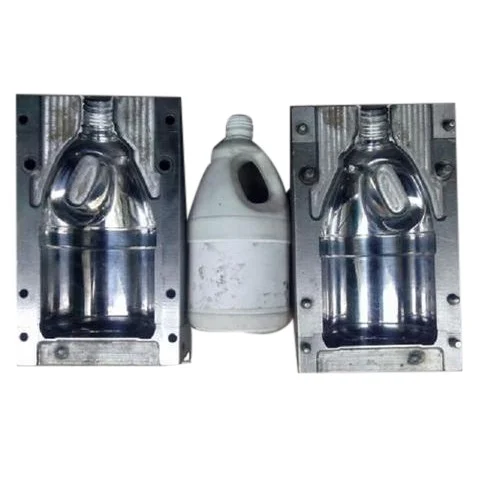

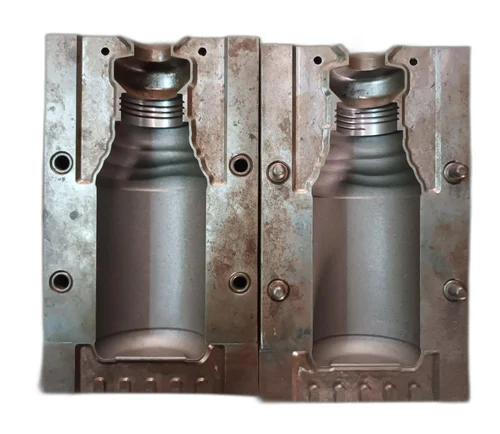

🏭 What are HDPE Blow Moulds?

HDPE blow moulds are specialized tooling used to manufacture hollow plastic products from High-Density Polyethylene (HDPE) material. HDPE is one of the most widely used thermoplastics for blow moulding due to its excellent chemical resistance, high strength-to-density ratio, durability, and cost-effectiveness.

At Laxmi Micro Industries, we have been manufacturing high-precision HDPE blow moulds since 1987. Our moulds are engineered for uniform wall thickness, high output rates, corrosion resistance, and extended service life. We serve industries including chemicals, lubricants, pharmaceuticals, and industrial packaging.

⚙️ Key Features of Our HDPE Blow Moulds

  • Corrosion-Resistant Design - Specialized for handling aggressive chemical containers
  • Optimized Cooling Channels - Reduced cycle times for higher productivity
  • Uniform Wall Thickness - Consistent product quality across all cavities
  • Wear-Resistant Construction - Hardened steel for extended mould life
  • High Cavitation Options - Up to 8+ cavities for high-volume production
  • Easy Maintenance - Modular design for quick replacement of wear parts

🏭 Applications of Our HDPE Blow Moulds

🛢️

Jerry Cans

1L to 50L capacity jerry cans for chemicals, lubricants, fuels, and industrial fluids

🧴

Chemical Containers

Bottles and containers for acids, alkalis, detergents, and industrial chemicals

💊

Pharmaceutical Bottles

Medicine bottles, syrup containers, and sterile packaging

🚗

Automotive Fluids

Engine oil bottles, coolant containers, windshield washer fluid bottles

🏠

Household Products

Detergent bottles, cleaning product containers, storage bins

🥛

Food Packaging

Milk bottles, juice containers, edible oil bottles, food-grade containers

✅ Why HDPE for Blow Moulding? HDPE Blow Moulds Advantage

High-Density Polyethylene (HDPE) offers numerous advantages for blow moulded products:

  • Excellent Chemical Resistance - Withstands acids, alkalis, and many solvents
  • High Strength-to-Weight Ratio - Strong yet lightweight containers
  • Moisture Barrier - Excellent protection against moisture and humidity
  • Recyclable - Environmentally friendly and widely recycled
  • Cost-Effective - Lower material cost compared to many alternatives
  • FDA Approved - Suitable for food and pharmaceutical contact

Products made using our HDPE blow moulds offer:

  • Long service life even in harsh environments
  • Impact resistance for shipping and handling
  • UV resistance for outdoor applications
  • Compatibility with hot-fill applications
  • Excellent printability for labeling and branding

🔧 Types of HDPE Blow Moulds We Manufacture

  • Extrusion Blow Moulds - For jerry cans, drums, and large containers
  • Injection Blow Moulds - For small, high-precision bottles and containers
  • Injection Stretch Blow Moulds - For oriented HDPE containers with enhanced properties
  • Multilayer Blow Moulds - For barrier packaging with EVOH or adhesive layers
  • Handleware Blow Moulds - For containers with integrated handles
  • Custom Design Moulds - As per customer specifications and drawings

✅ Quality Assurance for HDPE Blow Moulds

  • Material Certification - All mould materials with test certificates
  • Precision Machining - Tolerances up to ±0.01mm
  • CMM Inspection - 100% dimensional inspection of all components
  • Cooling Circuit Testing - Pressure testing of all cooling channels
  • Mould Trial - Live production testing on blow moulding machines
  • Wall Thickness Analysis - Verification of uniform material distribution

🔧 Our HDPE Blow Mould Manufacturing Process

1. Design & Analysis

3D modelling and simulation of blow moulding process using advanced CAD/CAM software with Moldflow analysis.

2. Material Selection

Selection of appropriate mould steel (P20, H13, S136) based on production volume and application.

3. Precision Machining

High-speed CNC machining of mould cavities, cores, pinch-off areas, and cooling channels.

4. Heat Treatment

Hardening and tempering of mould components for wear resistance and extended service life.

5. Quality Inspection

CMM (Coordinate Measuring Machine) inspection to ensure dimensional accuracy of all components.

6. Trial Runs

Live mould trials on blow moulding machines with sample production and quality verification.

📦 Materials Used in Our HDPE Blow Moulds

P20 Steel

For general-purpose HDPE blow moulds with good polishability and machinability

H13 Steel

For high-temperature applications and extended mould life

Stavax / S136

For corrosion-resistant applications and high-gloss finishes

Aluminium

For prototype moulds and low-volume production runs

⭐ Why Choose Laxmi Micro Industries for HDPE Blow Moulds?

35+ Years of Experience

Founded in 1987 by Mr. Shantilal Panchal, we have extensive expertise in HDPE blow mould manufacturing.

Advanced Infrastructure

Our tool room is equipped with 5-axis CNC machines, EDM, wire-cut, and CMM for precision manufacturing.

Corrosion-Resistant Expertise

Specialized knowledge in designing moulds for aggressive chemical and pharmaceutical applications.

Quick Turnaround

Typical lead time of 15-25 days for most HDPE blow mould requirements.

Pan-India Delivery

We serve clients across India including Ahmedabad, Mumbai, Delhi, Pune, Chennai, Bangalore, and Kolkata.

After-Sales Support

We provide spare parts, maintenance guidance, and technical assistance even after mould delivery.

📐 Technical Specifications of Our HDPE Blow Moulds

Container Capacity

From 50ml to 50 litres

Mould Materials

P20, H13, S136, Aluminium, Beryllium Copper

Cavity Count

1 to 8 cavities depending on container size

Surface Finish

Mirror polish, texture, or matte finish as required

Mould Life

1 million to 5 million+ shots depending on steel grade

Cooling Type

Water-cooled with optimized channel design

❓ Frequently Asked Questions About HDPE Blow Moulds

1. What is the difference between HDPE and LDPE for blow moulding?
HDPE (High-Density Polyethylene) is stronger, more rigid, and has better chemical resistance, making it ideal for jerry cans and industrial containers. LDPE (Low-Density Polyethylene) is more flexible and used for squeeze bottles. Our HDPE blow moulds are specifically designed for HDPE material properties.
2. What is the typical lead time for an HDPE blow mould?
Our standard lead time for HDPE blow moulds is 15-25 days from design approval, depending on complexity, size, and cavity count.
3. What is the maximum container size you can produce moulds for?
We manufacture HDPE blow moulds for containers up to 50 litres capacity, including jerry cans and industrial drums.
4. Can you manufacture HDPE blow moulds for food-grade applications?
Yes, we manufacture HDPE blow moulds for food-grade applications including milk bottles, juice containers, and edible oil bottles using FDA-compliant materials.
5. Do you provide trial runs before dispatch?
Yes, every HDPE blow mould undergoes live trial runs on blow moulding machines. We provide sample products and a trial report before final dispatch.
6. What is the expected life of your HDPE blow moulds?
Depending on the steel grade selected, our HDPE blow moulds can produce 1 million to 5 million+ shots. We recommend H13 steel for maximum mould life.
7. Can you manufacture HDPE blow moulds with handles?
Yes, we specialize in handleware HDPE blow moulds for containers with integrated handles, commonly used for jerry cans and industrial containers.
